Canyon Lake 12482L

Home Description

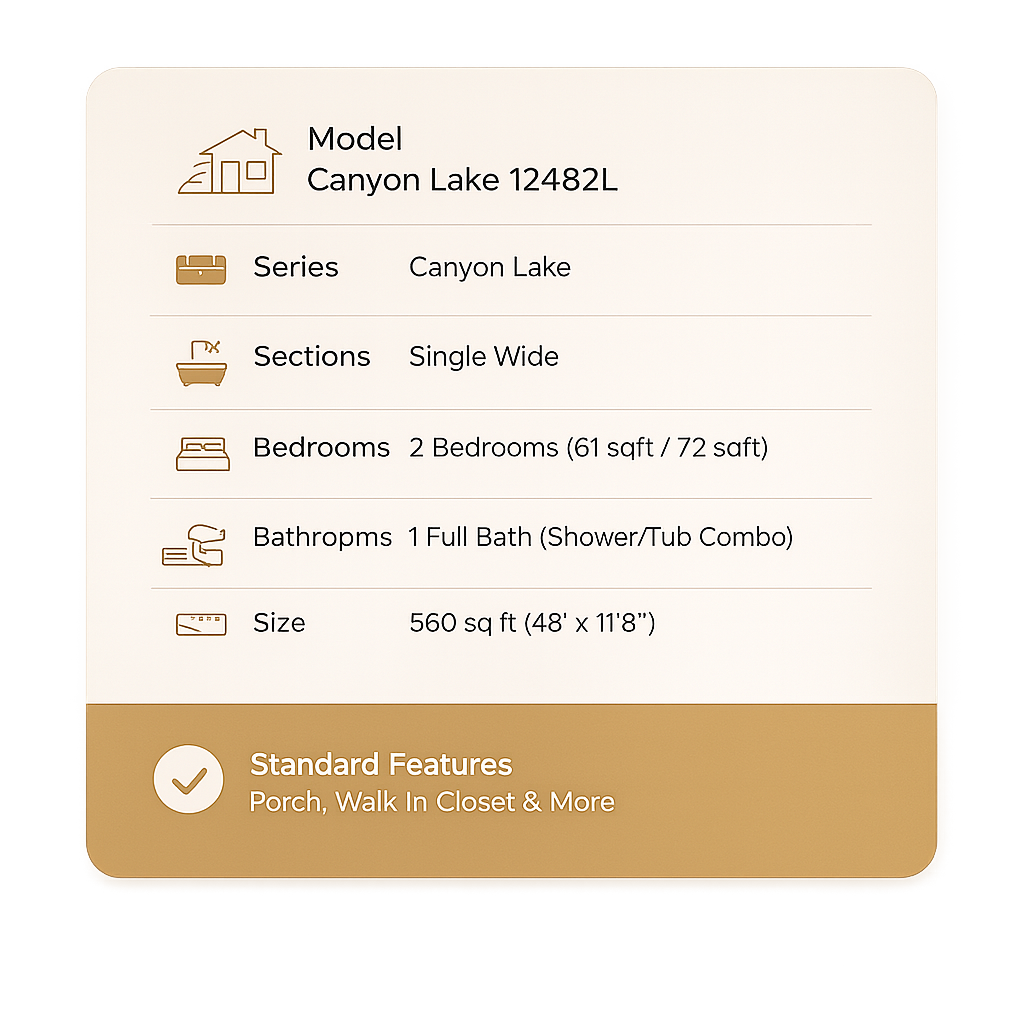

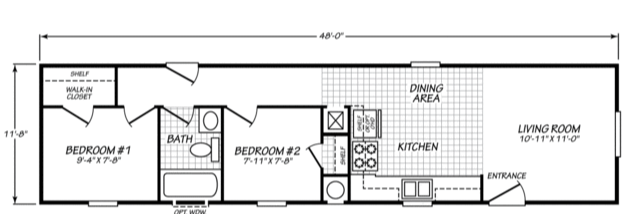

The Canyon Lake 12482L floorplan measures approximately 48 feet long and 11 feet 8 inches wide, offering a smart layout designed to maximize comfort in a smaller space.

The home features an L-shaped kitchen that opens directly to the dining and living room area, creating an open and welcoming environment. The front entrance leads into the living room and includes an option for three different bay window designs that add both natural light and architectural appeal.

An optional front porch measuring 6' x 11'8" can also be added to enhance outdoor living.

The rear entrance is located in the hallway across from the bathroom. Both bedrooms are positioned along the hallway for privacy and convenience.

The master bedroom, located at the far end of the home, is approximately 72 sq ft and includes a walk-in closet. There is also an optional modification to reduce closet size to allow installation of a stackable washer and dryer unit.

The second bedroom, located closer to the living area, measures approximately 61 sq ft.

Standards
Kitchen
Faucet w/ Pullout Sprayer – Brushed Nickel
30" Free-Standing Gas Range – White
18.1 CF Refrigerator – White
Stainless Steel 8" Deep Sink
30" Range Hood – White
Doors & Windows
36" 6-Panel Fiberglass Front Door
36" 6-Panel Fiberglass Rear Door
Dual Glass Low-E Vinyl Windows
2-Panel Interior Doors (T/O)
Mortised Door Hinges – Nickel Tulip
Interior Door Knobs – Nickel
Exterior
Insulation: R21 – 11 – 11
Exterior Window Trim (T/O)
Allura Fiber Cement Vertical Siding
Roof Pitch: 3:12 / 4:12 (Single Wides)
12" Front Overhang
Roof Load: 20 lb.
Cabinetry
4" Laminate Backsplash – Master Bath
4" Laminate Backsplash – Guest Bath
4" Laminate Backsplash – Kitchen
Kitchen 3-Door Pantry (model specific)
White-Lined Overhead Cabinets
White-Lined Base Cabinets
Wire Utility Shelf
Side-Mount Drawer Guides
Concealed Cabinet Hinges
Nickel Round Cabinet Knobs
Shaker Cabinet Doors (Paper-Wrap)
3-Drawer Bank – Kitchen
12" Shelf Above Refrigerator
Interior
Knockdown Ceiling Finish
Tape & Texture – Closets
Tape & Texture (T/O)
1" Mini Blinds (T/O)
Rebond Carpet Padding
2" Door Casing
Tape & Texture – Wet Areas
Tape & Texture – Living Areas
Square Interior Corners (T/O)
2" Baseboards – Wet Areas

Disclosure

All sizes, dimensions, and square footage are approximate and based on nominal manufacturer measurements. Floor plans, renderings, photos, videos, and 3D tours are for illustrative purposes only and may show optional features, upgrades, or finishes not included in the base price. Prices, specifications, materials, features, availability, and product offerings are subject to change or discontinuation at any time without notice due to manufacturer updates, material costs, labor costs, regulatory requirements, or other factors. Some media and floor plans are manufacturer-provided and remain the property of their respective owners. Model names used on this website are for branding purposes by Bejarano Property Group; the official model designation used in purchase agreements, engineering documents, and permit applications may differ. Buyers should inquire directly to confirm current pricing, specifications, included features, and available options.
