Bejarano ADU Series Model E505J
Home Description
Bejarano - ADU Series Model E505J is a 693 sq ft, 2 bedroom, 1 bathroom accessory dwelling unit measuring approximately 52′ long and 13′4″ wide and featuring a split-bedroom layout that provides additional privacy between sleeping areas. This thoughtfully designed floorplan offers comfortable living spaces within a compact footprint, making it well suited for guest housing, rental units, or backyard ADU development.
The main living area is positioned near the center of the home and measures approximately 10′7″ by 12′4″, connecting seamlessly to the dining area and kitchen to create a functional open layout. The kitchen features hardwood shaker-style cabinetry with crown molding, laminate crescent-edge countertops with backsplash, and stainless steel appliances including an 18.1 cubic foot refrigerator, 30″ range with hood vent, and a deep stainless steel sink with pull-out sprayer faucet. Optional front window packages or sliding glass door configurations may be incorporated to enhance natural light and exterior access.
The primary bedroom measures approximately 10′9″ by 10′0″ and is located on one side of the home, while bedroom two measures approximately 9′11″ by 12′4″ and is positioned on the opposite side, creating separation between sleeping spaces. A centrally located bathroom serves both bedrooms and the main living area. Optional washer and dryer accommodations may also be incorporated depending on the final home configuration.
Homes in the Bejarano - ADU Series feature ½″ drywall throughout with hand-finished knockdown wall texture, sculptured floor molding and door casings, vinyl flooring in kitchen, dining, bathroom and utility areas, and carpet with rebound padding in living and bedroom spaces. Additional interior features include faux wood blinds, wood closet shelving systems, and prehung interior doors with satin nickel hardware.
Construction highlights include 9′ sidewalls with flat ceilings, 2×6 exterior wall construction, tongue-and-groove OSB floor decking, R-22 wall insulation, R-33 ceiling insulation, and R-11 floor insulation for durability and improved energy efficiency. Exterior finishes include cement fiber siding, architectural roof shingles, dual-pane vinyl windows, and semi-gloss exterior paint.
Optional configurations may include optional washer and dryer space, additional linen cabinetry, alternate bathroom configurations, and other customization features depending on the final home specification.

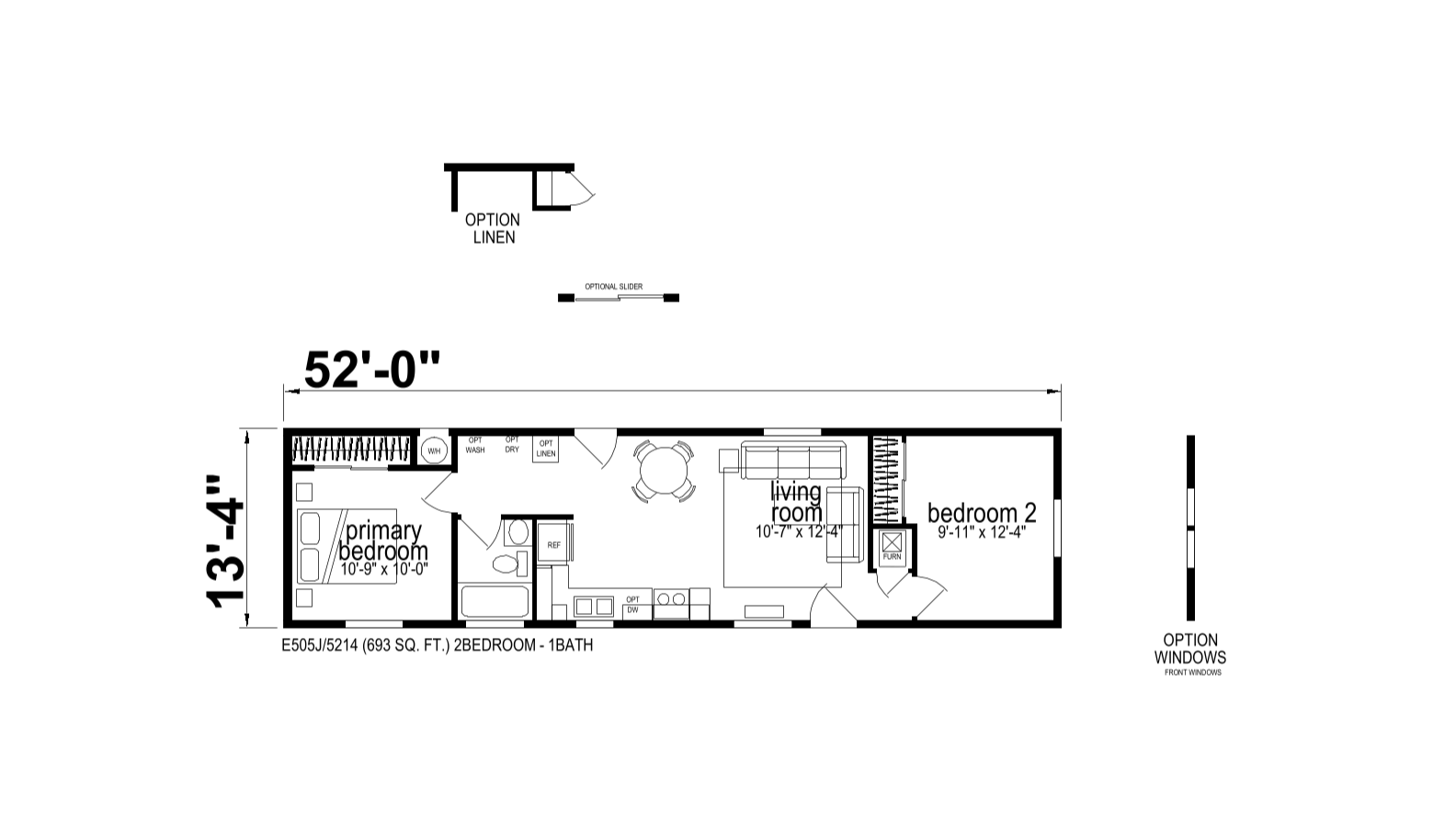

Floor Plan
Efficient Design for Smaller Spaces
Disclosure
All sizes, dimensions, and square footage are approximate and based on nominal manufacturer measurements. Floor plans, renderings, photos, videos, and 3D tours are for illustrative purposes only and may show optional features, upgrades, or finishes not included in the base price. Prices, specifications, materials, features, availability, and product offerings are subject to change or discontinuation at any time without notice due to manufacturer updates, material costs, labor costs, regulatory requirements, or other factors. Some media and floor plans are manufacturer-provided and remain the property of their respective owners. Model names used on this website are for branding purposes by Bejarano Property Group; the official model designation used in purchase agreements, engineering documents, and permit applications may differ. Buyers should inquire directly to confirm current pricing, specifications, included features, and available options.
